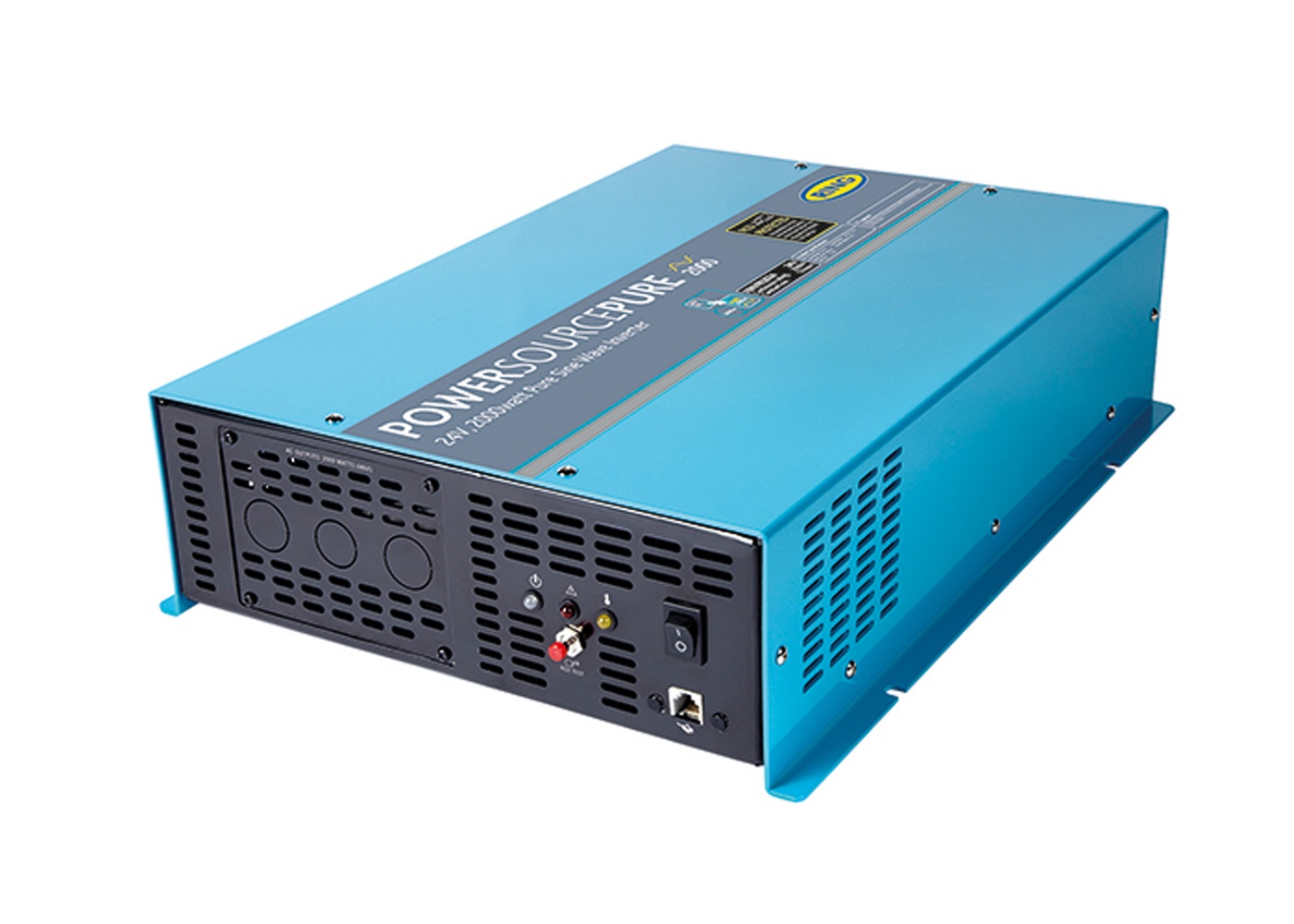

PowerSourcePure 2000W Inverter with RCD

Pure sine wave 24V

RINVPR2024

Professional 2000W pure sine wave inverter, suitable for 24V vehicles, with integral Residual Current Device (RCD). This can replace the need for an external RCD and will switch off the inverter in the event a fault is detected between live and earth. This protects the user against electric shocks.

Inverters convert 24V power into useful 230V power - ideal when working remotely where no mains power is available, and particularly for vehicle conversions. Well suited to demanding applications, with rugged extruded metal casing, heavy duty input cables and clamps for direct connection to batteries and able to provide power for up to 12 hours.

Pure sine wave inverters provide an extremely pure sine wave output, which replicates the normal domestic mains supply. This makes them ideal for powering more sensitive electronics, and able to power the widest range of equipment. This is particularly valuable for powering those products not compatible with modified sine wave inverters, such as certain power tools, coffee machines, laser printers and sensitive audio/visual equipment.

The PowerSourcePure 2000W inverter is able to power devices up to 2000W, such as mircowaves, an oxygen concentrator or a circular saw. Features 2x plug sockets, and includes low power alarm to alert you when the battery powering the inverter is running low - preventing the inverter from draining the vehicle battery - and automatic shut down. Fully protected against overload, over temperature and low/high voltages. The LED display shows operating mode and fault conditions.

Includes remote control port, to add the RINVWRC remote control panel, which provides more convenient control and display of the inverter status for permanent installation.

All Ring inverters are tested and certified to the relevant EMC and LVD Directives.

  • 2000W pure sine wave inverter
  • Integrated RCD protects the user against electric shocks
  • Suitable for 24V vehicles
  • Rugged extruded metal casing
  • Heavy duty input cables and clamps
  • Provides continuous power for up to 12 hours
  • Features 2x plug sockets
  • Low power alarm and shut down to prevent inverter draining the battery
  • Fully protected against overload, over temperature and low/high voltage
  • LED display shows operating mode and fault conditions
  • CE approved
Product dimensions (mm): HxWxD
99 x 291 x 415
Weight (kg)
7.208
Voltage
24V DC Input 230V AC Output
Wattage
2000W
Continuous power rating (up to 12hrs)
2000W
Surge power rating (up to 1 sec)
4000W
Output voltage
230AV +/- 10%
Output frequency
50Hz
Output waveform
Pure sine wave
Input voltage range
10V - 16V
Efficiency
>85%
No load current draw
<1.5A
Low battery alarm sounds
10.5V +/- 1V
Low battery shut down
10.0V +/- 1V
Thermal protection
60°C +/- 10°C
Remote control port
Yes

Available as

BOX - SINGLE
Code: RINVPR2024

BOX - SINGLE
