PowerSourcePure 1000W Inverter

Pure sine wave 24V

RINVP1024 UK 24V pure sine wave PowerSourcePure 1000W inverter

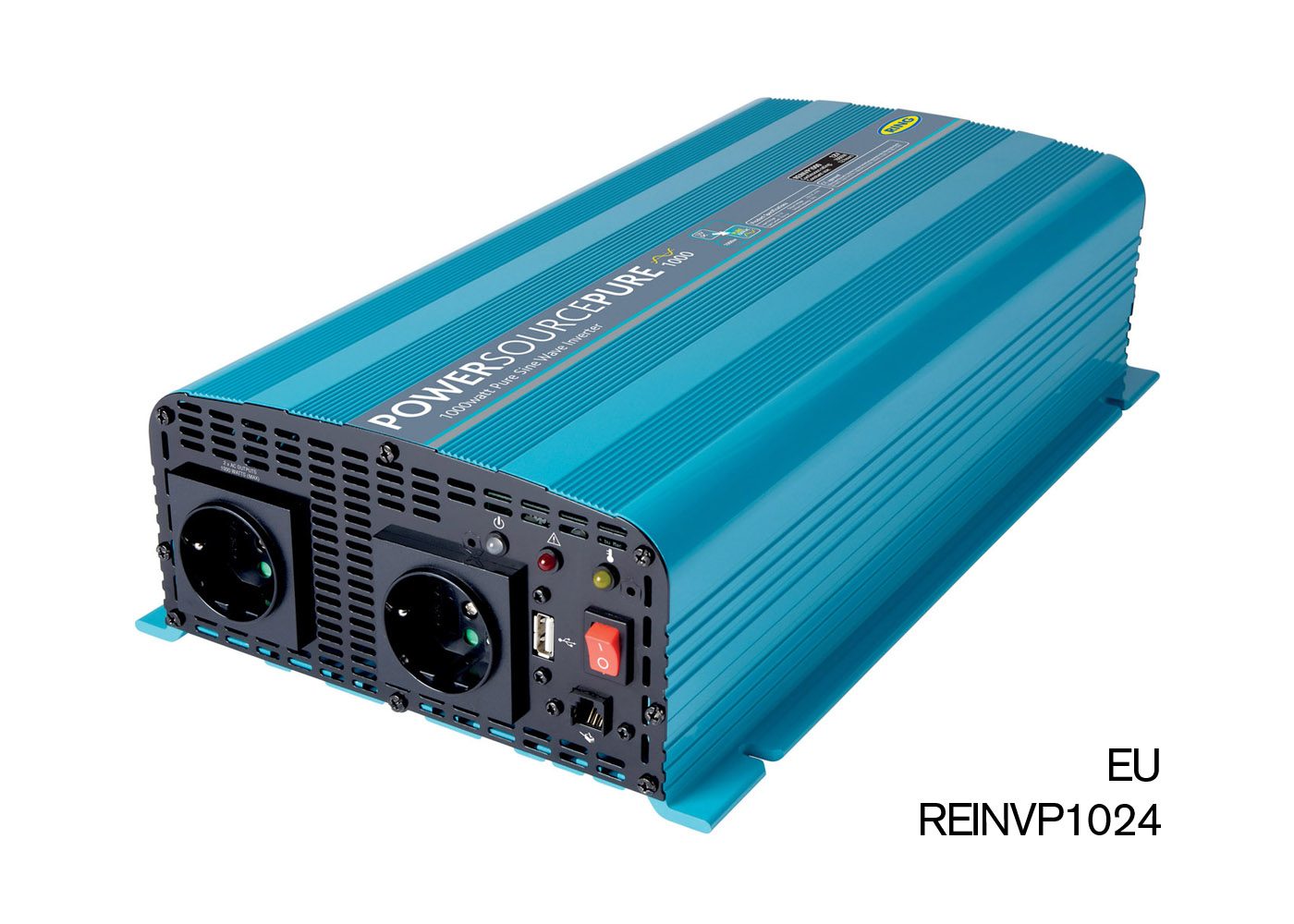

REINVP1024 EU 24V pure sine wave PowerSourcePure 1000W inverter

RINVP1024/REINVP1024

Professional 1000W pure sine wave inverter, suitable for 24V vehicles. Converts 24V power into useful 230V power - ideal when working remotely where no mains power is available, and particularly for vehicle conversions. Well suited to demanding applications, with rugged extruded metal casing, heavy duty input cables and clamps for direct connection to batteries and able to provide power for up to 12 hours.

Pure sine wave inverters provide an extremely pure sine wave output, which replicates the normal domestic mains supply. This makes them ideal for powering more sensitive electronics, and are able to power the widest range of equipment. This is particularly valuable for powering those products not compatible with modified sine wave inverters, such as certain power tools, coffee machines, laser printers and sensitive audio/visual equipment.

The PowerSourcePure 1000W Inverter is able to power devices up to 1000W, such as mircowaves, an oxygen concentrator or an industrial water pump. Features 2x plug sockets, available in three pin (part number RINVP1024) and two pin (part number REINVP1024), plus a high power USB port for charging smart phone, tablets and other devices. Includes low power alarm to alert you when the battery powering the inverter is running low - preventing the inverter from draining the vehicle battery - and automatic shut down. Fully protected against overload, over temperature and low/high voltages. The LED display shows operating mode and fault conditions.

Includes remote control port, to add the RINVWRC remote control panel, which provides more convenient control and display of the inverter status for permanent installation.

All Ring inverters are tested and certified to the relevant EMC and LVD Directives.

For Ring's full range of 12 & 24V inverters for commercial vehicles, click here

  • 1000W pure sine wave inverter
  • Suitable for 24V vehicles
  • Rugged extruded metal casing
  • Heavy duty input cables and clamps
  • Provides continuous power for up to 12 hours
  • Features 2x plug sockets, plus a high power USB
  • Low power alarms and shut down to prevent inverter draining the battery
  • Fully protected against overload, over temperature and low/high voltage
  • LED display shows operating mode and fault conditions
  • CE approved
Product dimensions (mm): HxWxD
100 x 223 x 420
Weight (kg)
5.964
Voltage
24V DC Input 230V AC Output
Wattage
1000W
Continuous power rating (up to 12hrs)
1000W
Surge power rating (up to 1 sec)
2000W
Output voltage
230V AC+/- 10%
Output frequency
50Hz
Output waveform
Pure sine wave
Input voltage range
10V - 16V
Efficiency
>85%
No load current draw
<1.3A
Low battery alarm sounds
10.5V +/- 1V
Low battery shut down
10.0V +/- 1V
Thermal protection
60°C +/- 10°C
USB
2A
Remote control port
Yes

Available as

BOX - SINGLE
Code: RINVP1024

BOX - SINGLE

BOX - SINGLE
Code: REINVP1024

BOX - SINGLE
