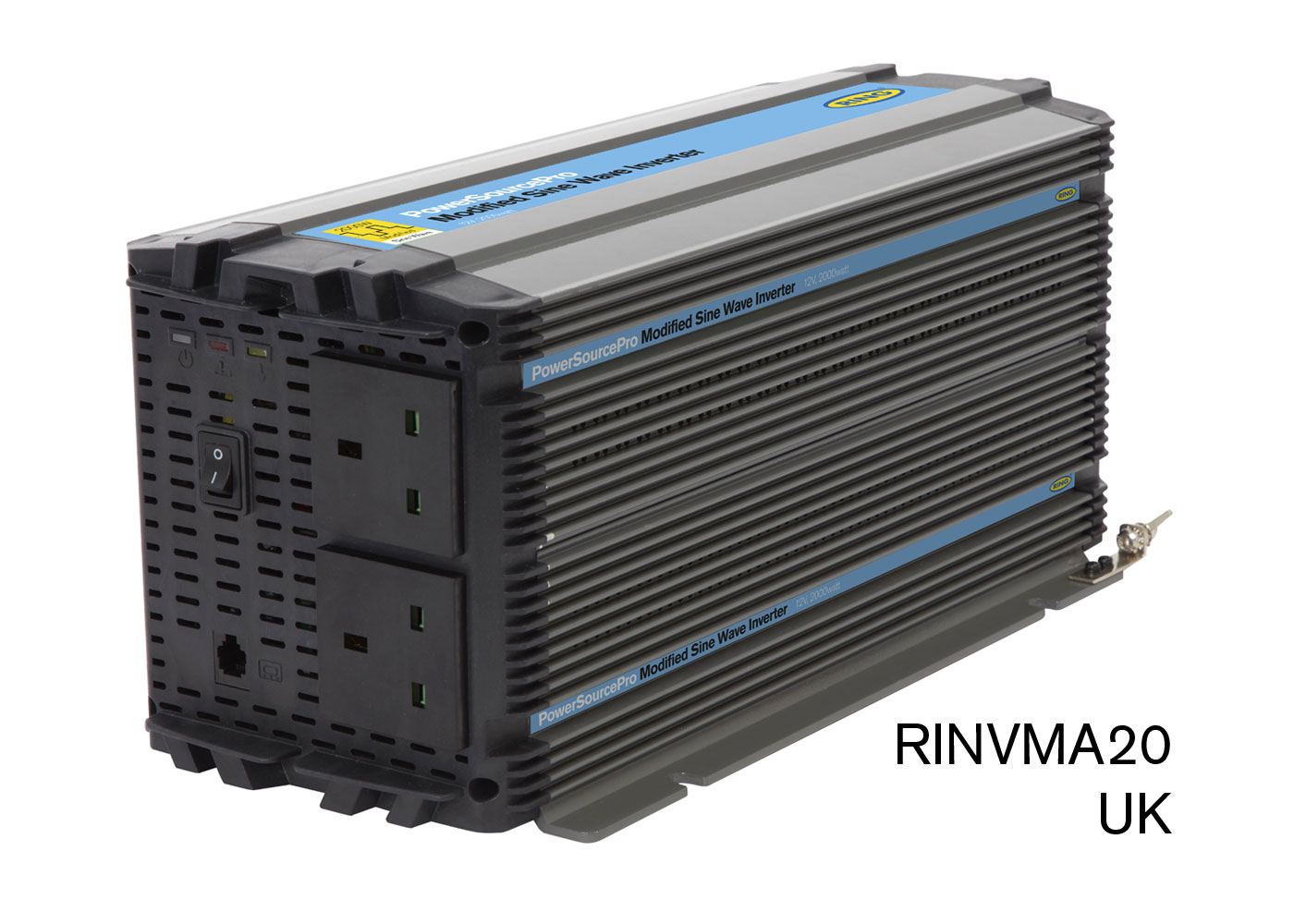

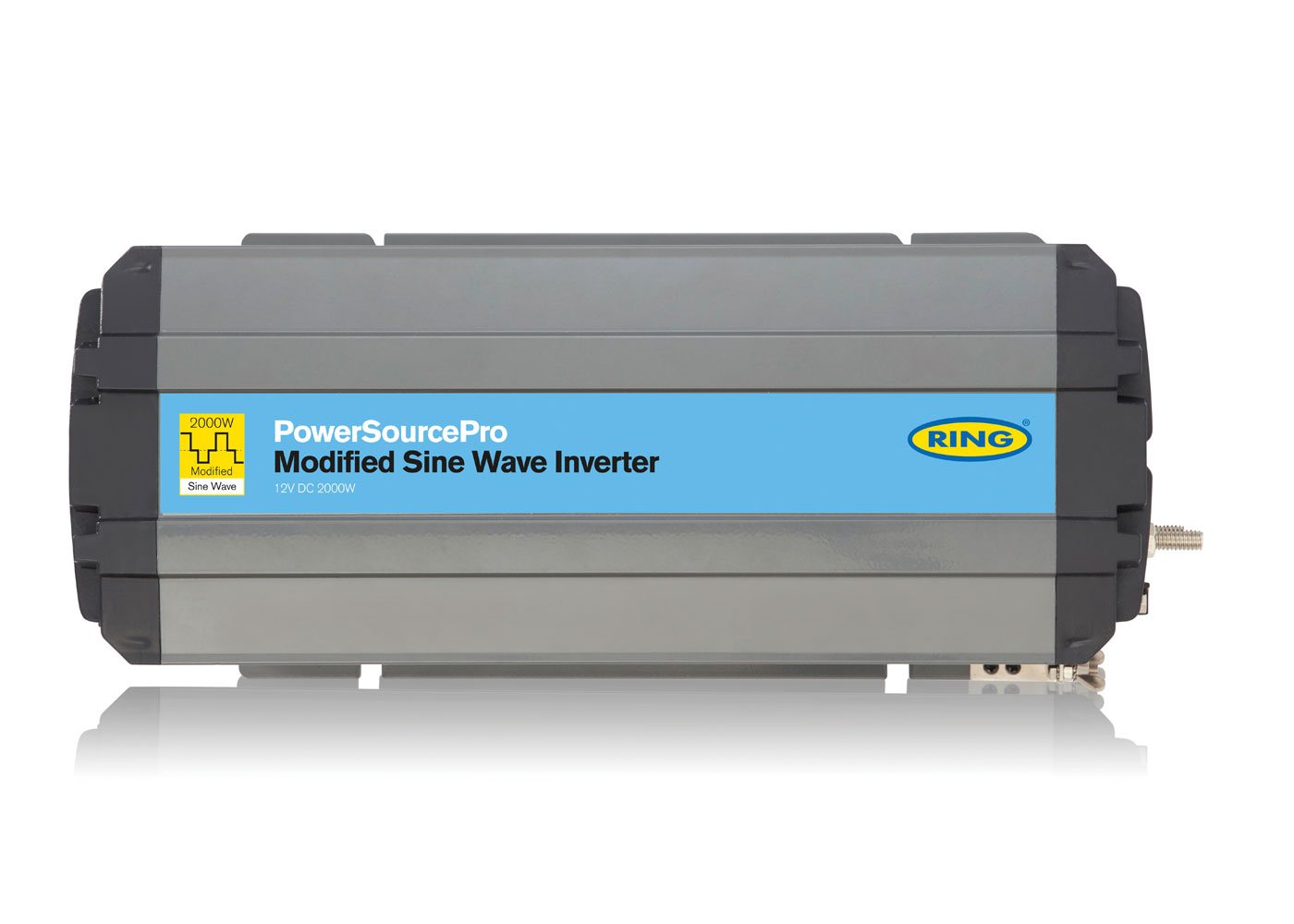

PowerSourcePure Modified Sine Wave Inverter

2000W 12V DC

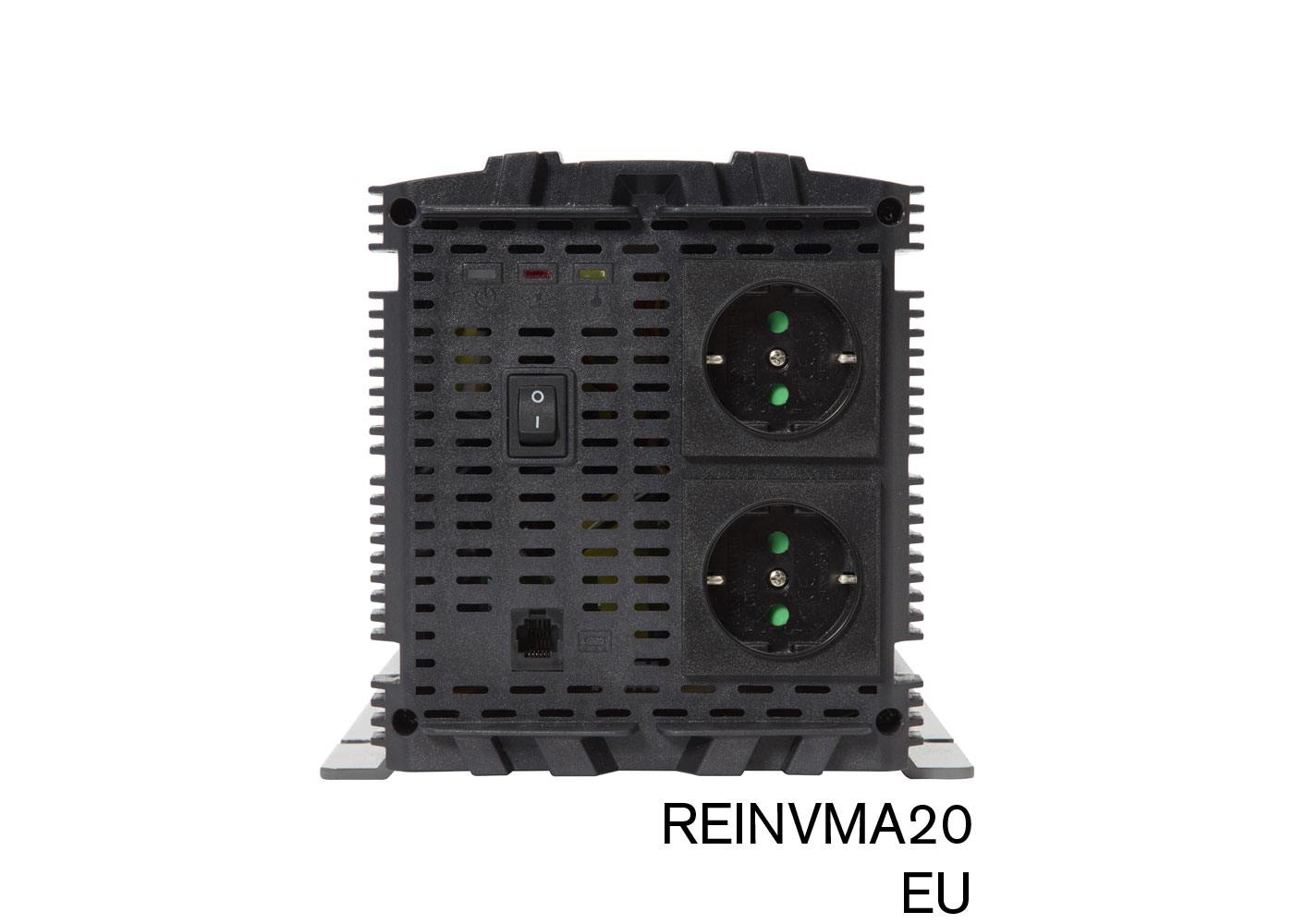

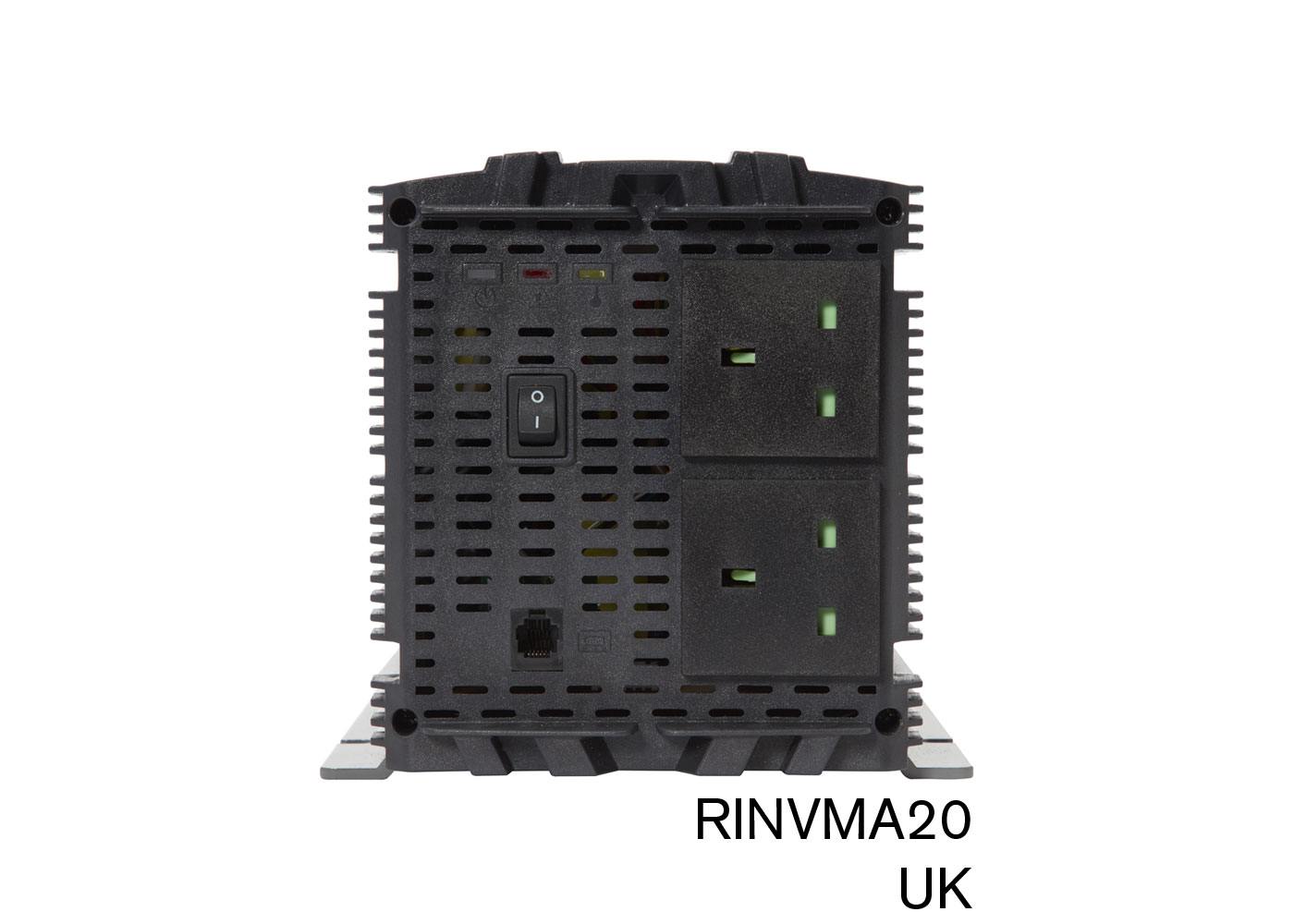

RINVMA20/REINVMA20

Professional 2000 watt modified sine wave inverter, converts 12 volt battery power into useful 230 volt AC mains power - ideal when working remotely where no mains power is available. Well suited to demanding applications, with rugged extruded metal casing, heavy duty input cables and clamps for direct connection to vehicle batteries. Modified sine wave is suitable for powering the majority of equipment such as mains power tools, fridges and compressors.

Highly efficient, running at 89% efficiency at 75% load, and with minimal footprint to reduce installation space. Fully protected against overload, over temperature and low/high voltages. Additional LCD screen is also available, to provide power consumption information – essential for effective power management when working remotely. Also available is the RINVCM Current Sensor, which monitors the inverter's battery current, allowing indication of time remaining before battery is flat to help improve power management.

PowerSourcePro inverters are tested and certified to the relevant EMC and LVD Directives.

For Ring's full range of commercial inverters and accessories, click here

  • 2000 watt modified sine wave output
  • Operating mode and fault indicators
  • Up to 12 hours continuous use
  • Compact heavy duty extruded casing
  • USB charging socket for mobile devices
  • Optional multi-function LCD display (part number RINVLCD)
  • Optional current sensor module (part number RINVCM)
  • Low power alarm and shut down to prevent inverter draining the battery
  • Suitable for 12V vehicles
Product dimensions (mm): HxWxD
161 x 172 x 387
Weight (kg)
5.572
Voltage
12V DC Input 230V AC Output
Wattage
2000W
Continuous power rating (up to 12hrs)
2000W
Peak power rating (up to 200ms)
4000W
Output voltage
230V AC +/- 10%
Output frequency
50Hz
Output waveform
Modified sine wave
Input voltage range
10 - 16V (12V nom)
Input current
196A (max)
Efficiency at 75% load
89%
No load current draw
<0.8A
Low battery alarm sounds
10.5V +/- 0.5V
Low battery shut down
10V +/- 0.5V
Thermal protection
60°C +/- 10°C
Display panel port
Yes
Current sensor port
Yes
