Colour screen Battery Analyser

Name: RBAG950
Brand: Ring

Lithium ready with 3m test cable 12V/24V

Home /
/ RBAG950

RBAG950

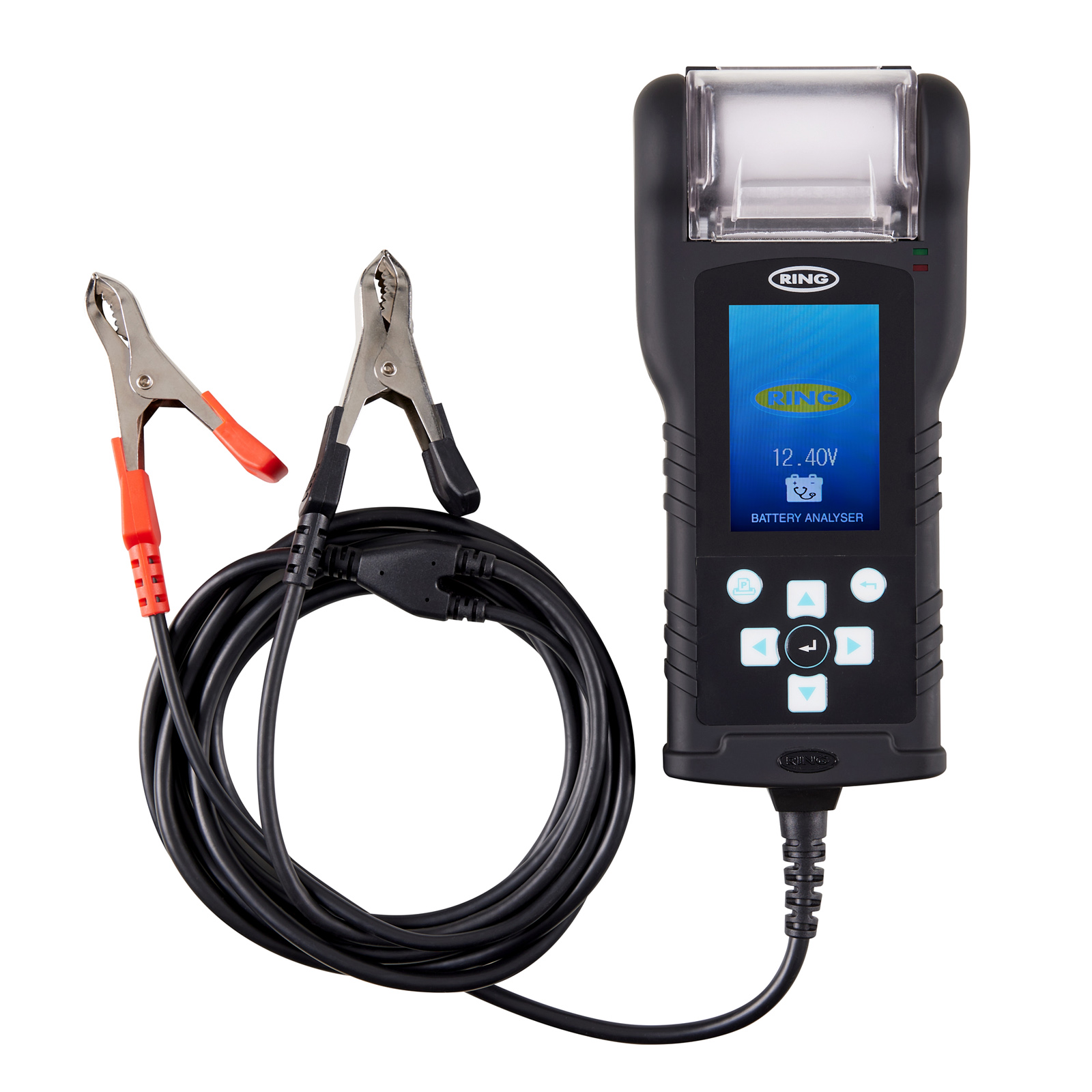

The RBAG950 Battery Analyser can provide a complete health check of the battery and electrical systems in 12V and 24V vehicles, such as motorcycles, cars & trucks.

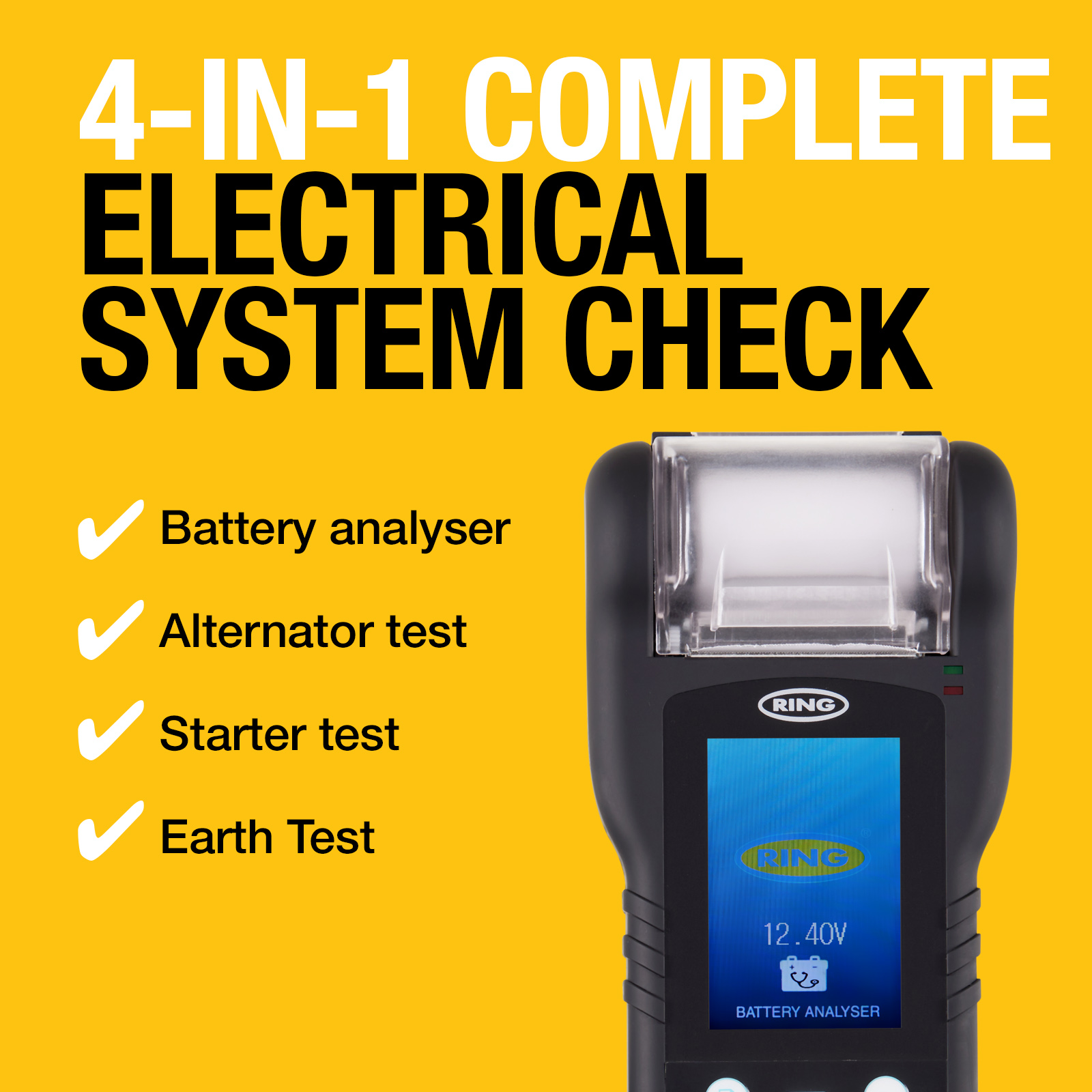

This multi-function unit can test the battery, alternator, starter and vehicle earth via its intuitive graphical interface. Results can then be printed using the built-in thermal printer, and viewed on other devices via the removable SD card or through the printed QR code.

The testing cables measure 3m in length, allowing the user to carry out lithium battery testing in or out of the vehicle. The device also comes in a handy storage case.

12/24V colour screen battery analyser

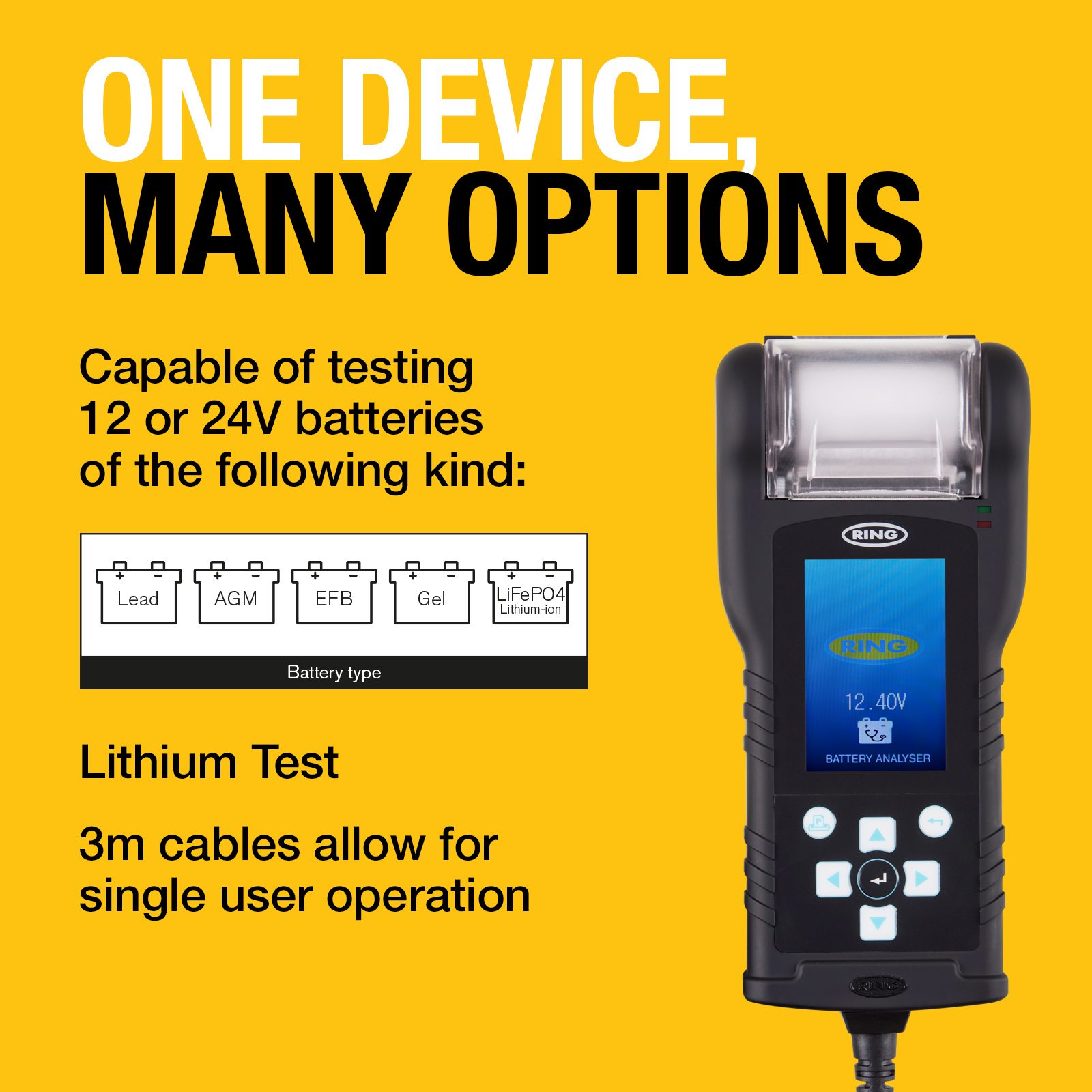

Carry out a battery health check on Lead, AGM, EFB, GEL & LiFePo4 batteries rated up to 2000CCA
Detect battery charging problems by checking alternator voltages fall within normal operating ranges
Check for potential starting problems by measuring battery voltage drop during engine cranking
Test earth connections between the battery, engine and chassis are in good condition

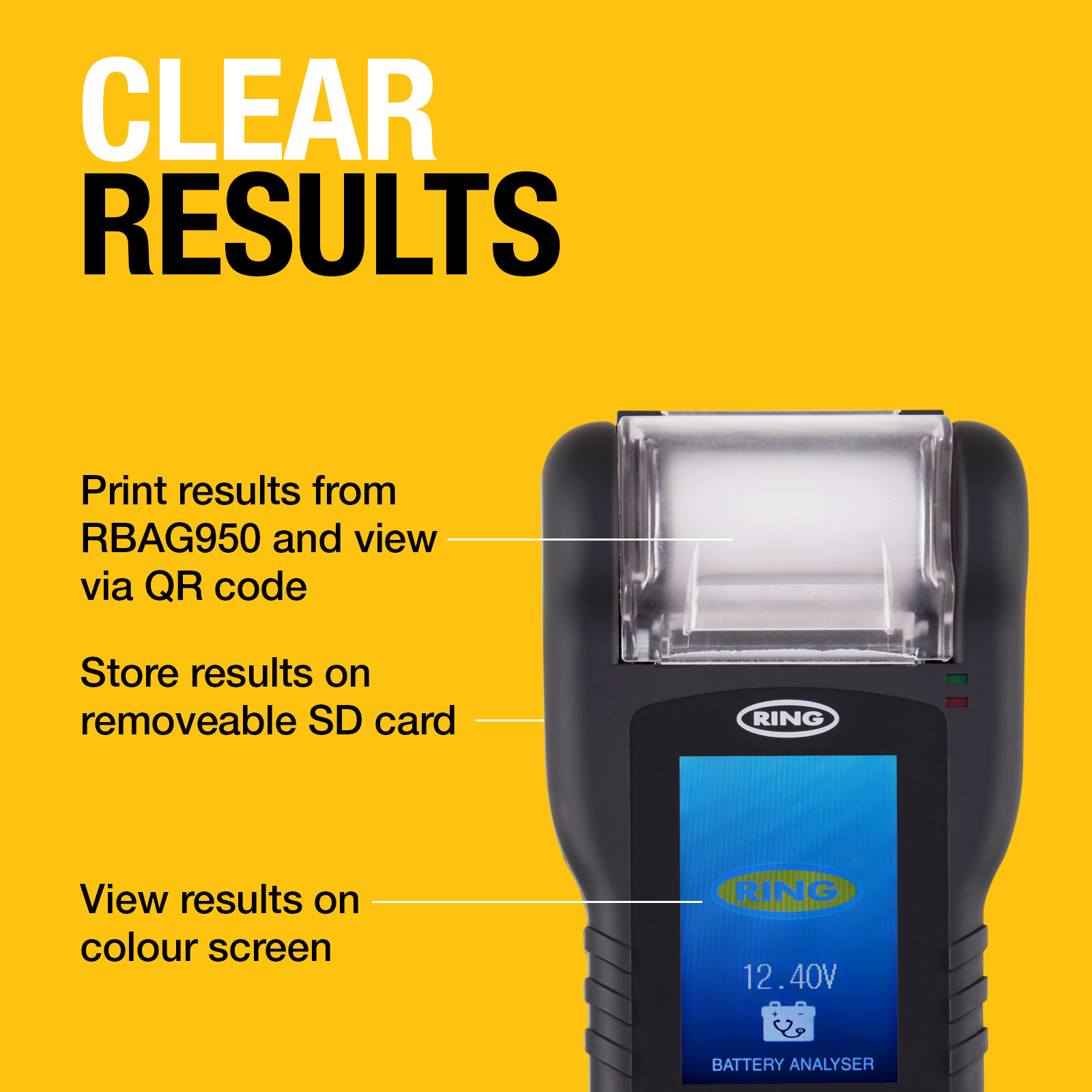

Print test results including garage name and address details with the integrated thermal printer
Memory storage for up to 80 results via removable SD card
Easy transfer of results via SD card or QR code
Battery voltage is displayed on wake up screen on power up
Robust storage case

Product dimensions (mm): HxWxD: 262 x 356 x 94

Weight (kg): 1.824

Voltage: 12/24V

Wattage: N/A

AmpsOutput: N/A

Battery Info:: Batteries Included
Type: DISPOSABLE NiMH
1 x CUSTOM
