Multi-Function Automotive Tester

With in-line testing 0-50V, 80A

RMM500

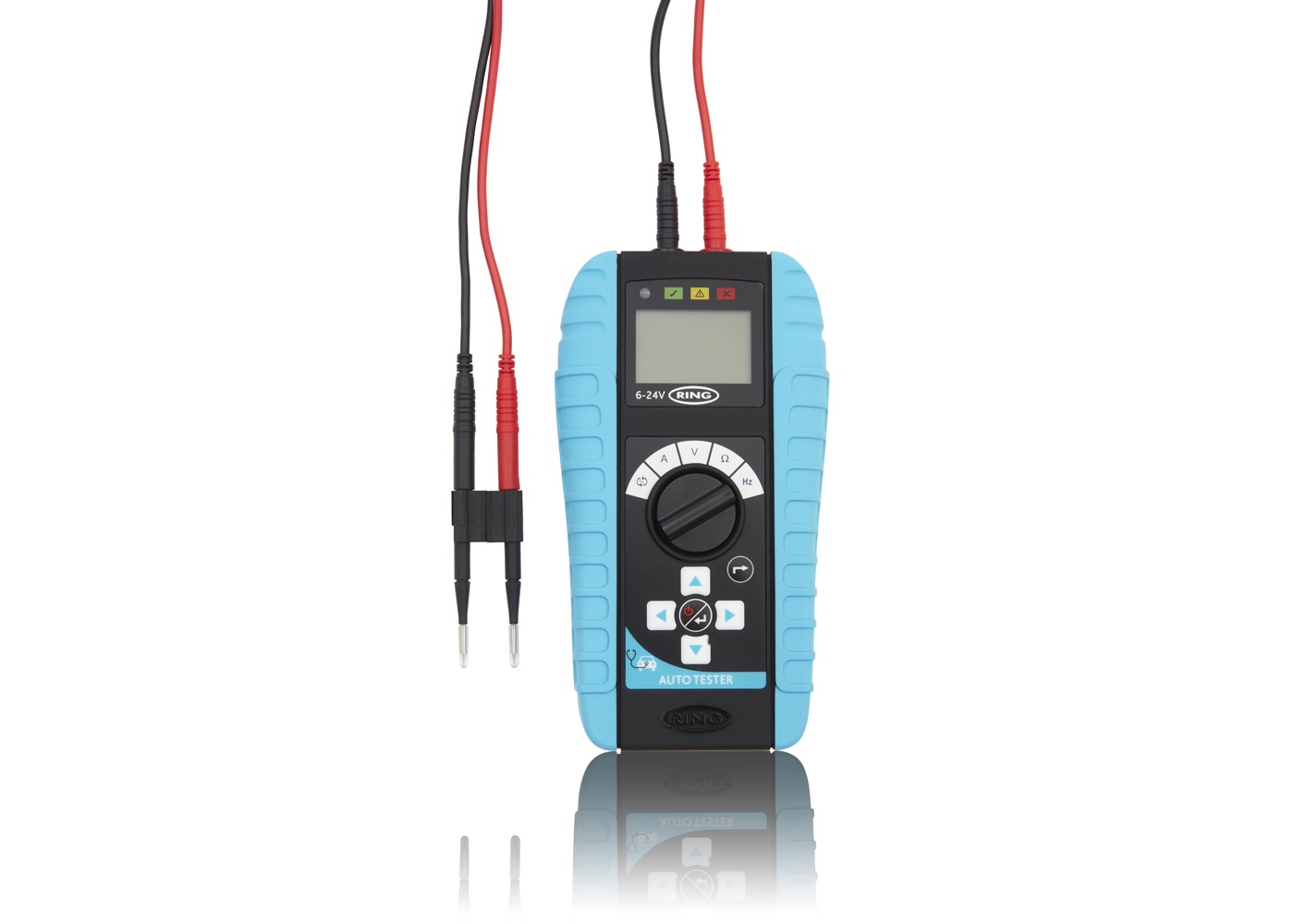

Multi-function automotive tester, designed specifically to find electrical automotive faults. The RMM500 only has settings relevant for automotive use. The innovative current test mode allows the technician to take amp readings directly at the fuse box without removing the fuses, saving time for garages. It features a voltage check, with a traffic light result indicator, giving an instant and easy-to-read assessment of the battery charge levels. The multi-function tester assesses circuit voltages, provides early indication of alternator or starter motor issues, quickly finds breaks in cables and faulty connections, can test operation of fuel injectors, check faulty sensors and more. Suitable for 6V, 12V and 24V vehicles, and comes with protective case, for safe and tidy storage.

For Ring's full range of professional battery tools, click here

  • Rapid current testing up to 80A without removing fuses

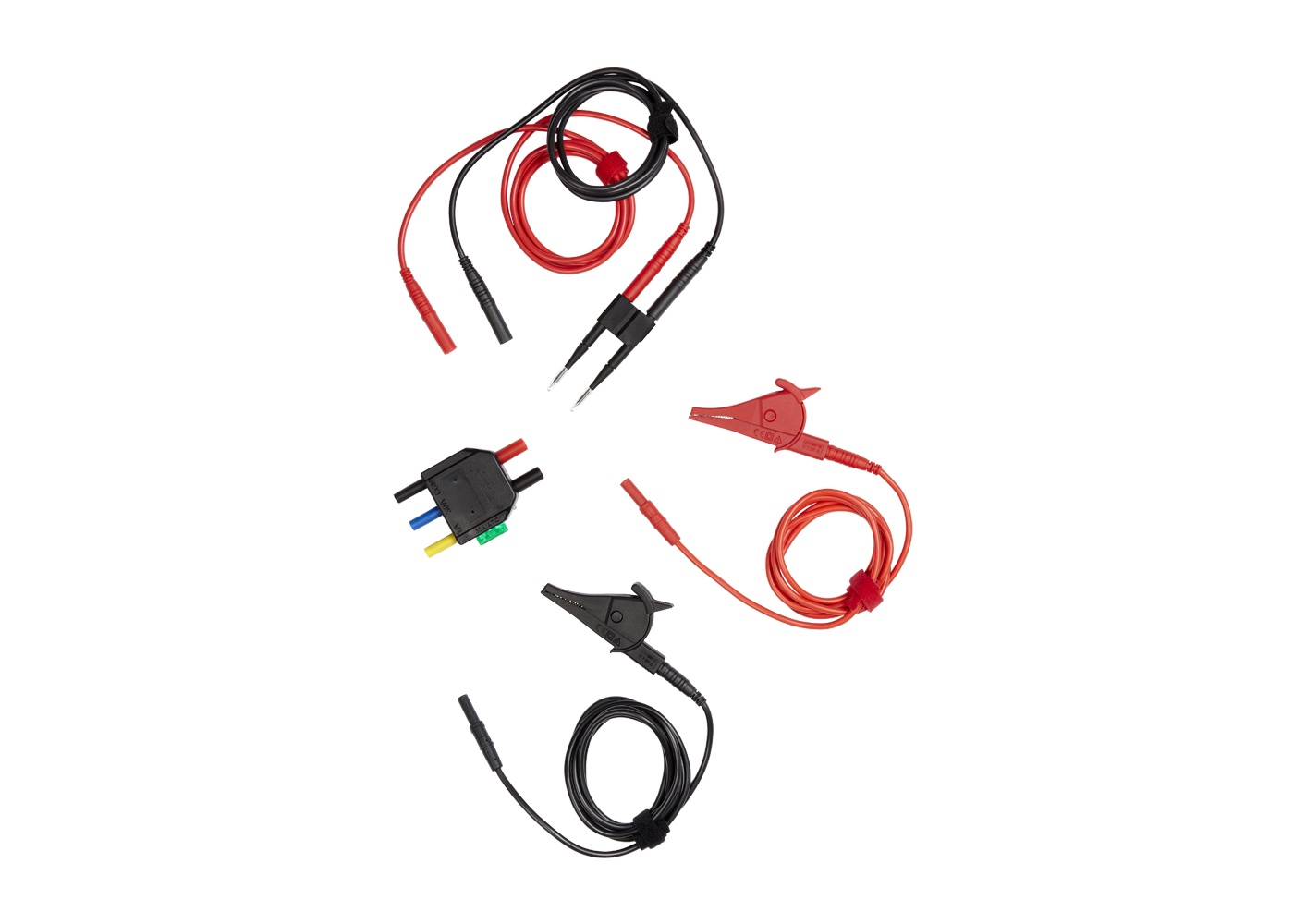

  • Current adapter for in-line current testing
  • Auto ranging 6/12/24V battery testing with traffic light LED result
  • 12/24V starter test checks battery during engine cranking
  • Normal and Smart 12/24V alternator test for checking vehicle charging system
  • Frequency and duty cycle settings aid testing of sensors
  • Continuity and resistance modes for locating wiring faults

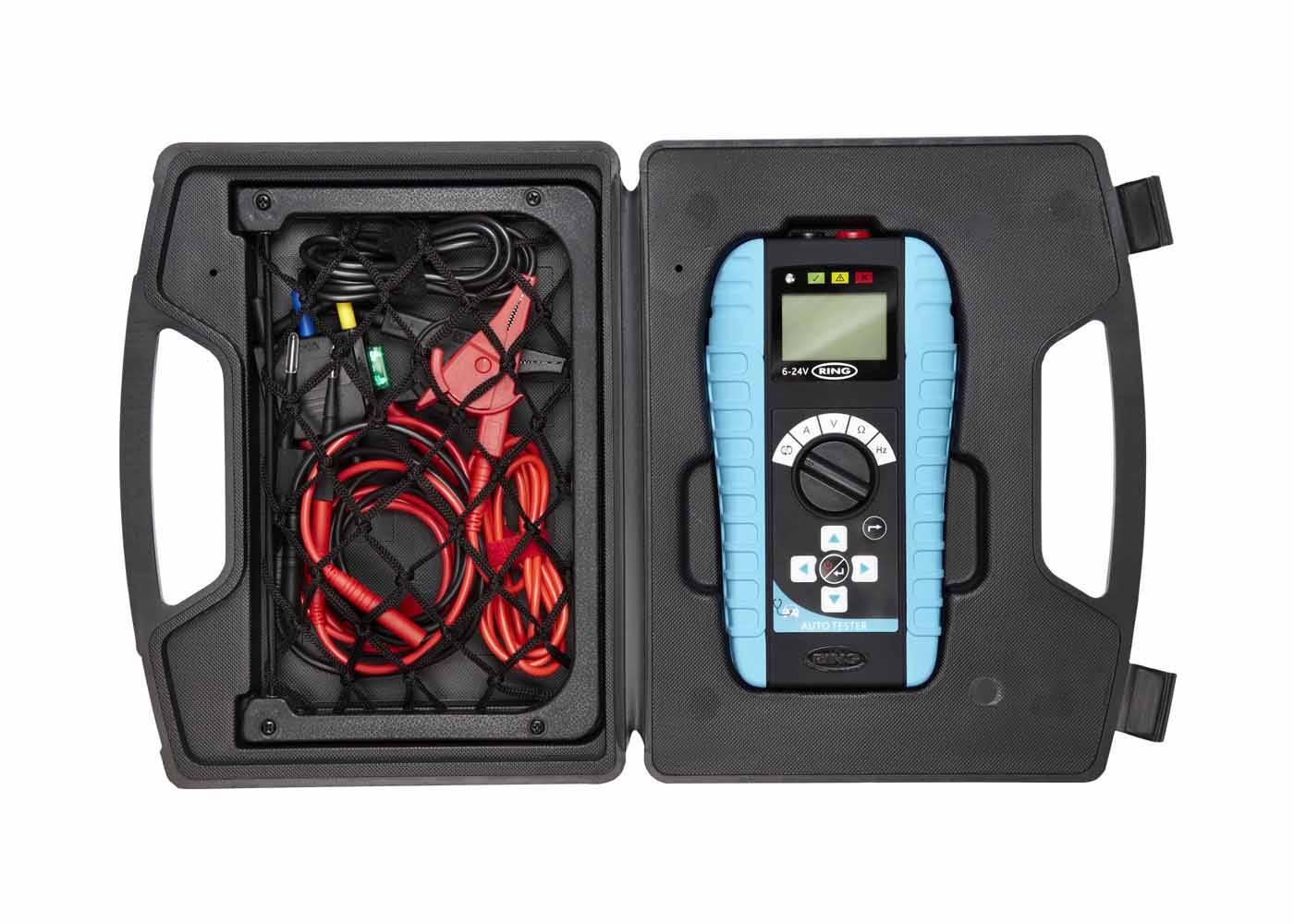

  • Robust storage case
Product dimensions (mm): HxWxD
262 x 350 x 95
Weight (kg)
1.608
Voltage
0-50V DC
AmpsOutput
0-80A
Battery Info:
Batteries Not Included
Type: DISPOSABLE ALKALINE
3 x AA - LR6

Available as

BOX - SINGLE
Code: RMM500

BOX - SINGLE
