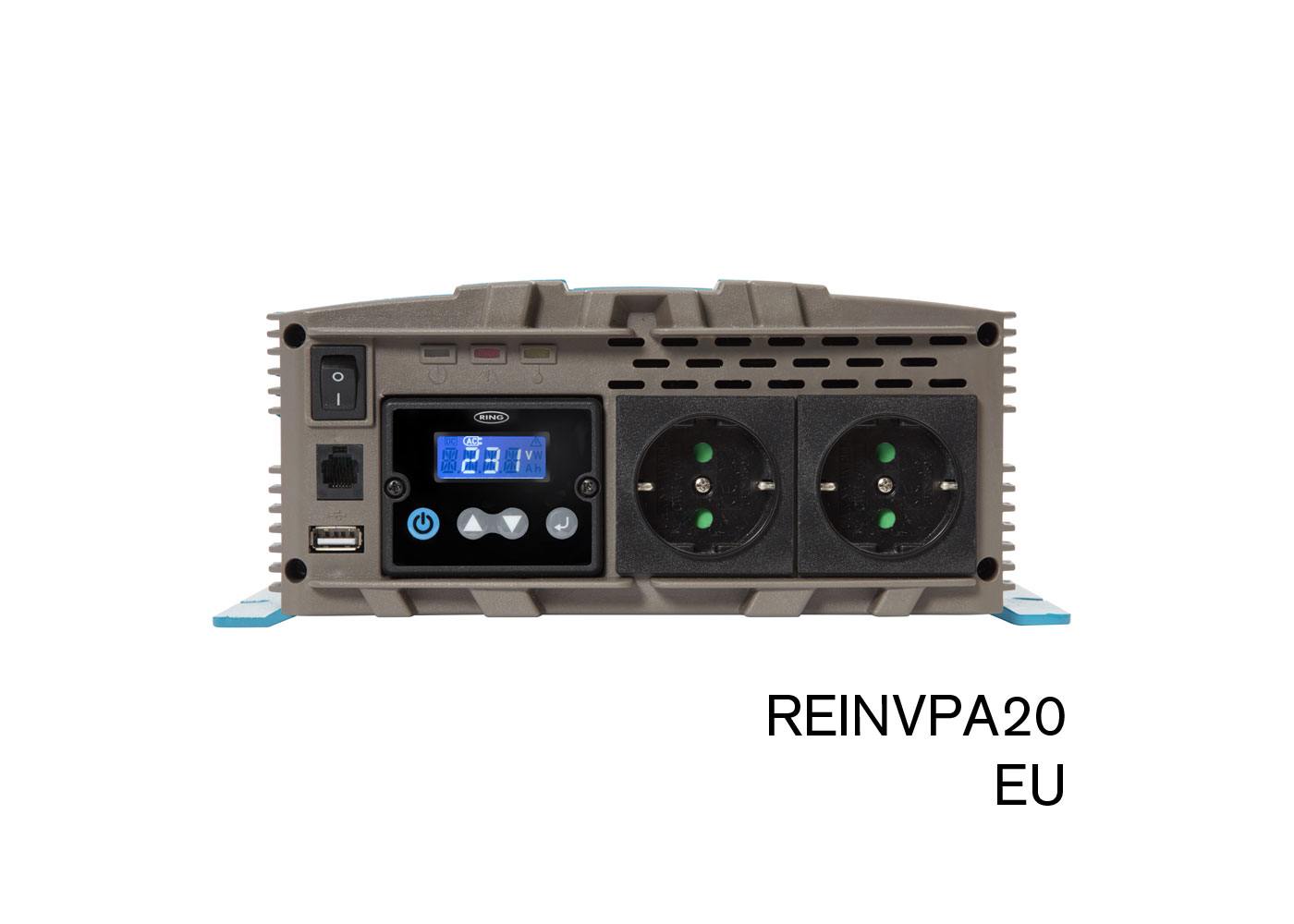

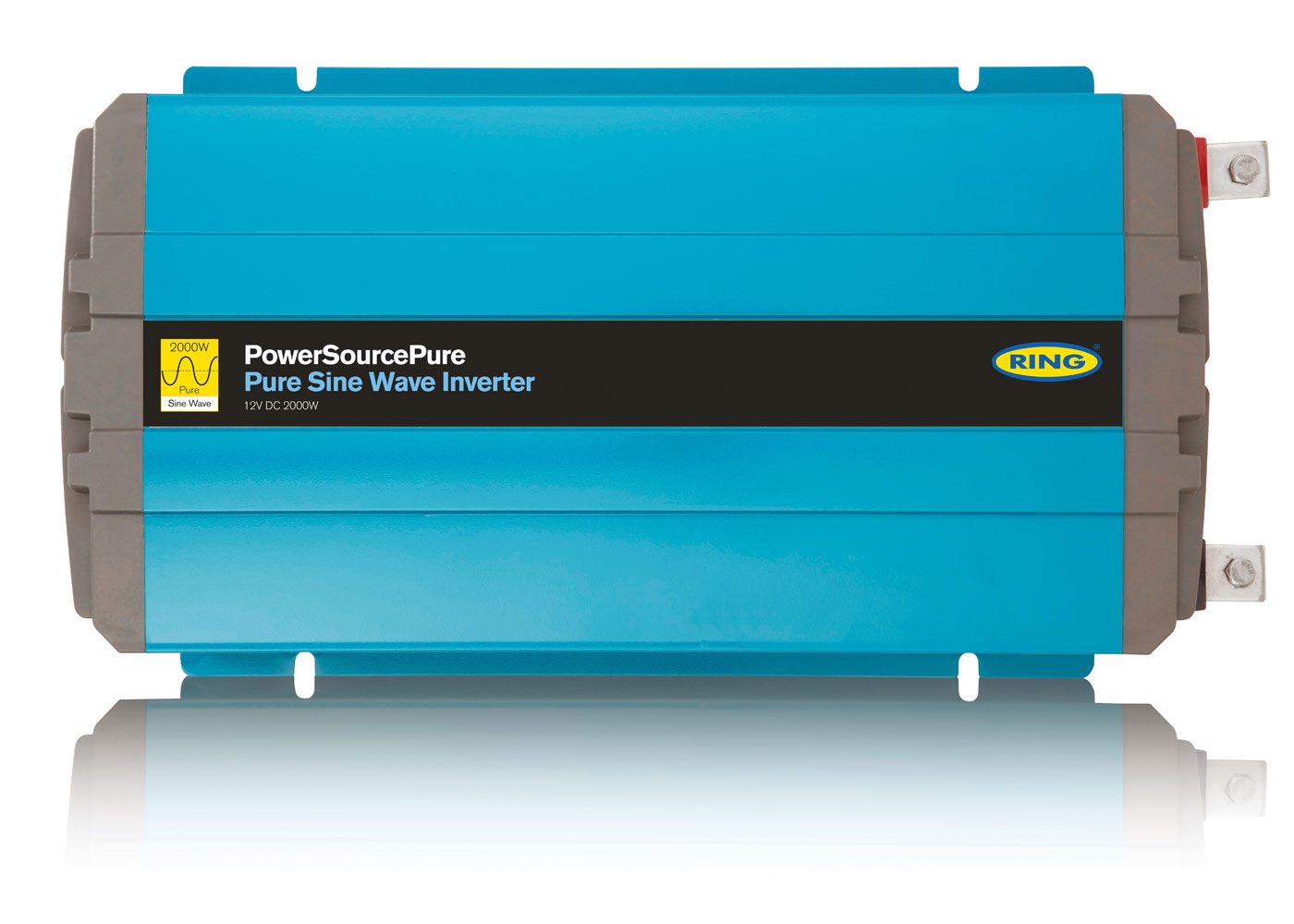

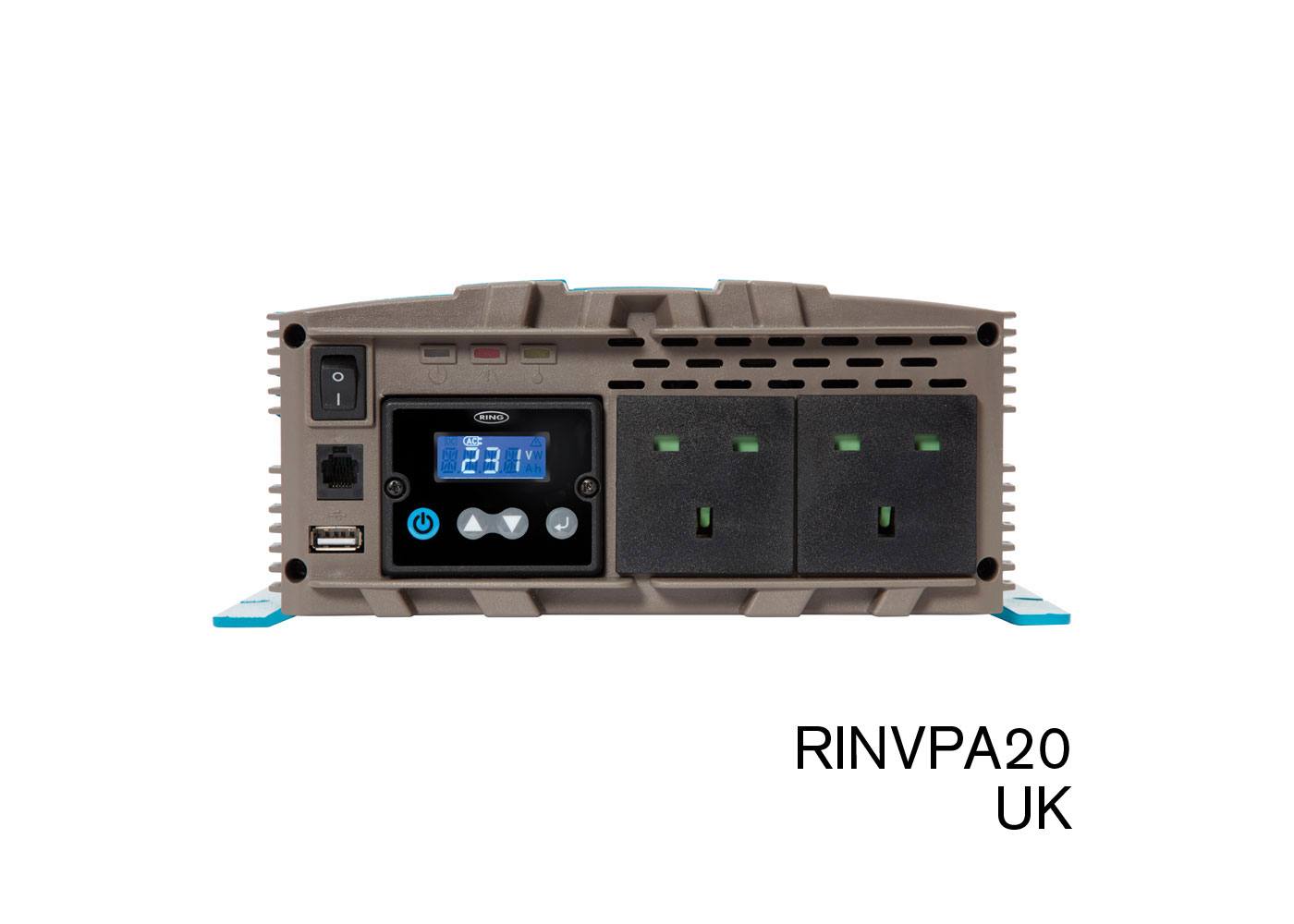

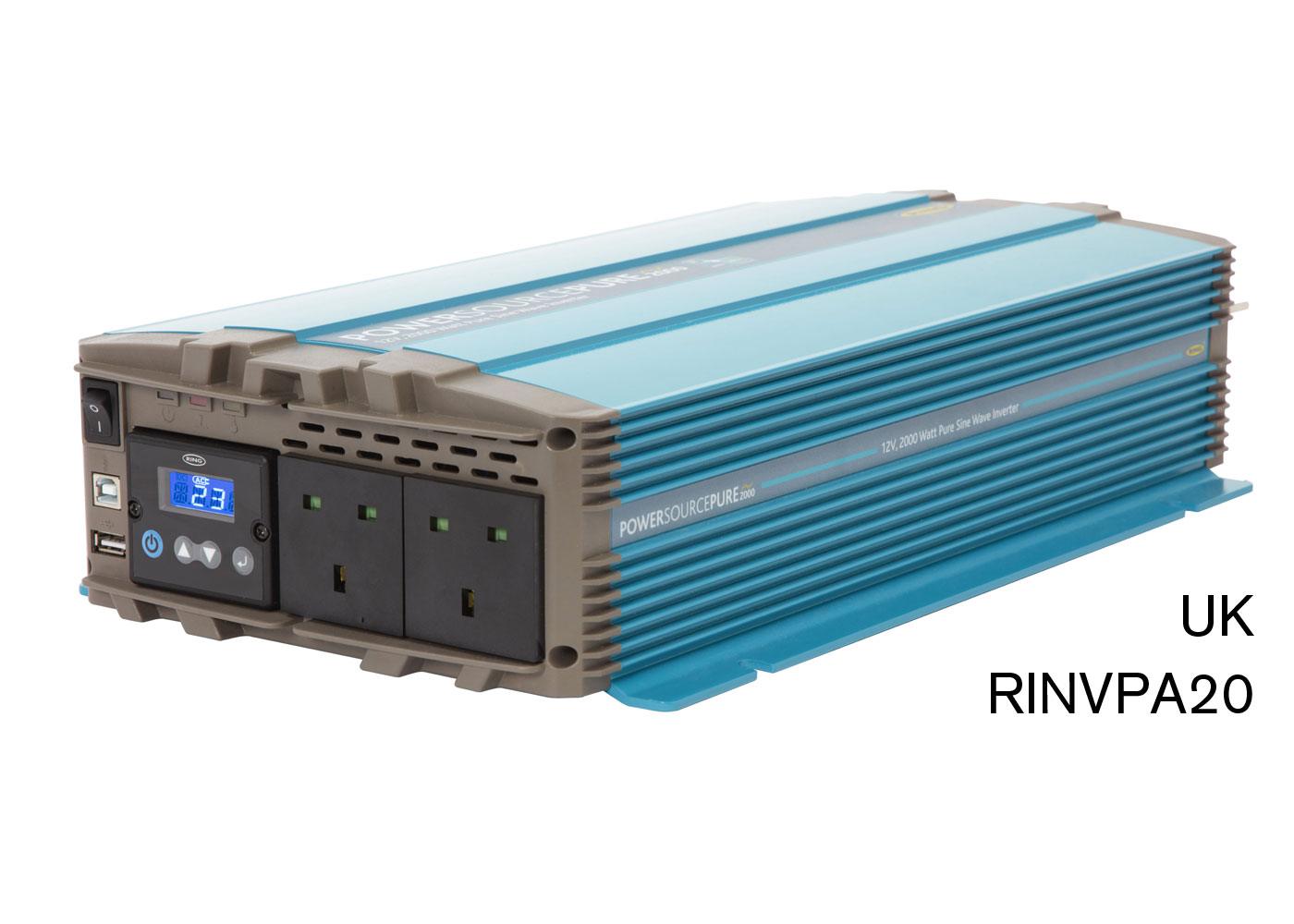

PowerSourcePure Pure Sine Inverter

2000W 12V DC

RINVPA20/REINVPA20

Professional 2000 watt pure sine wave inverter, converts 12 volt battery power into useful 230 volt AC mains power - ideal for remote applications such as service vehicles. Pure sine wave inverters provide an extremely pure output, which replicates the normal domestic mains supply. This makes them suitable for powering products not compatible with modified sine wave inverters, such as certain power tools, coffee machines, laser printers and sensitive electronics such as laptops and audio/visual equipment.

Highly efficient, running at 90% efficiency at 75% load, and with minimal footprint to reduce installation space. Includes a power saving mode to reduce battery drain when not in use. All models are fully protected against overload, over temperature and low/high voltages.

An additional LCD screen is also available, to provide power consumption information – essential for effective power management when working remotely. Also available is the RINVCM Current Sensor, which monitors the inverter's battery current, allowing indication of time remaining before battery is flat to help improve power management.
PowerSourcePure inverters are E-Marked and tested and certified to the relevant EMC and LVD Directives.

For Ring's full range of commercial inverters and accessories, click here

  • 2000W pure sine wave inverter
  • Operating mode and fault indicators
  • Power saving mode reduces standby power
  • Up to 12 hours continuous use
  • Compact heavy duty extruded casing
  • USB charging socket for mobile devices
  • Optional multi-function LCD frame (RINVFRM)
  • Optional battery sensor module (RINVCM)
  • Fully protected against overload, over temperature and low/high voltage
  • Suitable for 12V vehicles
Product dimensions (mm): HxWxD
98 x 248 x 464
Weight (kg)
7.17
Voltage
12V DC Input 230V AC Output
Wattage
2000W
E Regulation
10 - EMC
Continuous power rating (up to 12hrs)
2000W
Peak power rating (up to 200ms)
4000W
Output voltage
Adjustable: 200/220/230/240V AC +/-10%
Output frequency
Adjustable: 50/60Hz
Output waveform
Pure sine wave
Input voltage range
9.5 - 16.5V (12V nom)
Input current
196A (max)
Efficiency at 75% load
90%
N load current
<2A
Power saving mode
Yes
Power saving mode current
<0.2A
Low battery alarm sounds
10 - 11.5V +/- 0.5V
Low battery shutdown
9.5 - 11V +/-0.5V
Thermal protection
60 +/- 10°C
USB
2.1A
Display panel port
Yes
Current sensor port
Yes

Available as

BOX - SINGLE
Code: RINVPA20

BOX - SINGLE
