Ring Automotive: WIRELESS SWITCHING UNIT 12V 60A- RSU60
We use cookies to provide you with a better service. Review our cookie policy.

Wireless Connect

Switch 8 electrical products from one remote keypad 12V DC 60Amp

RSU60_Combined

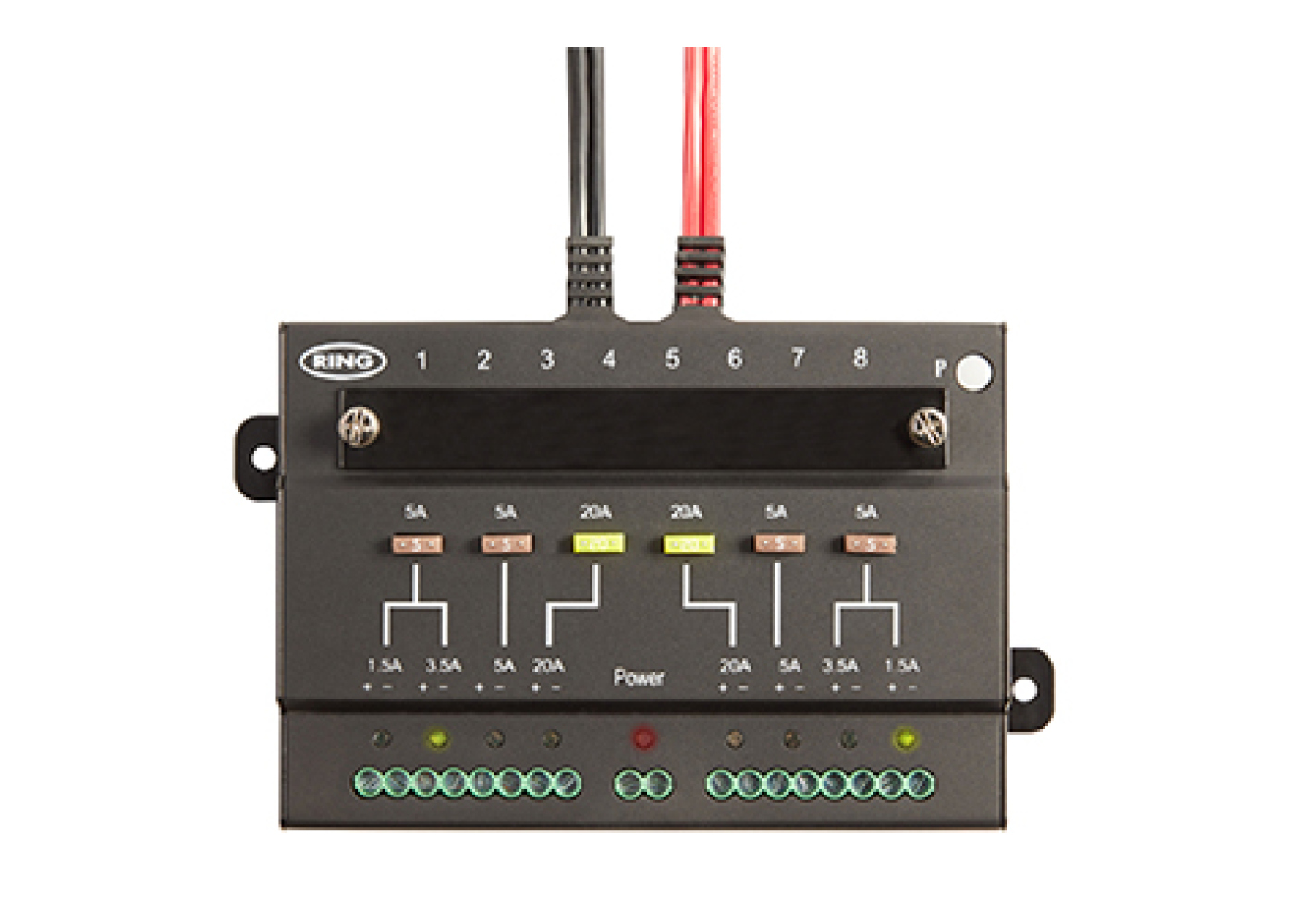

RSU60_TechHub
RSU60_Switch_Remote_on

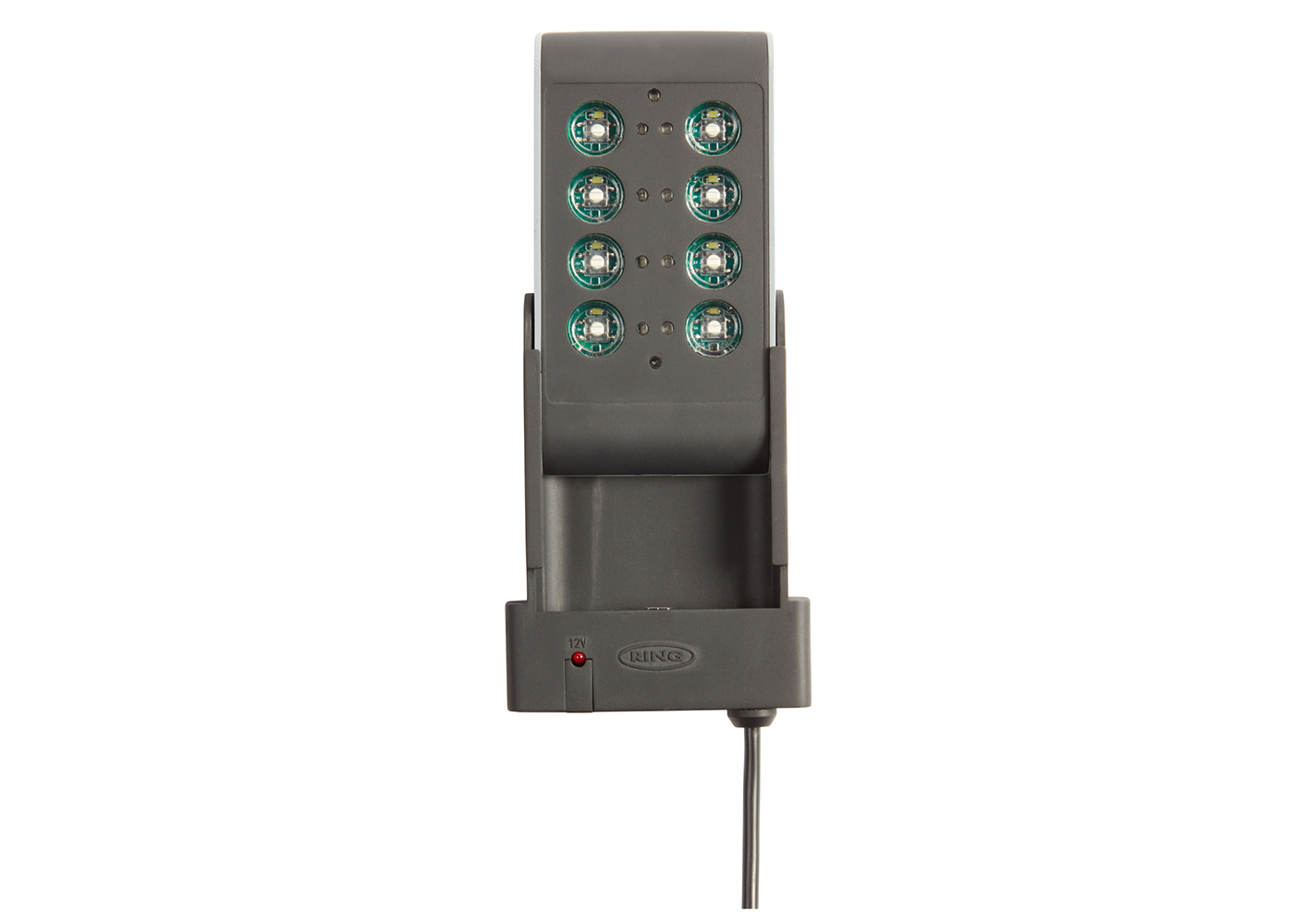

RSU60_Switch_Remote_Cradle

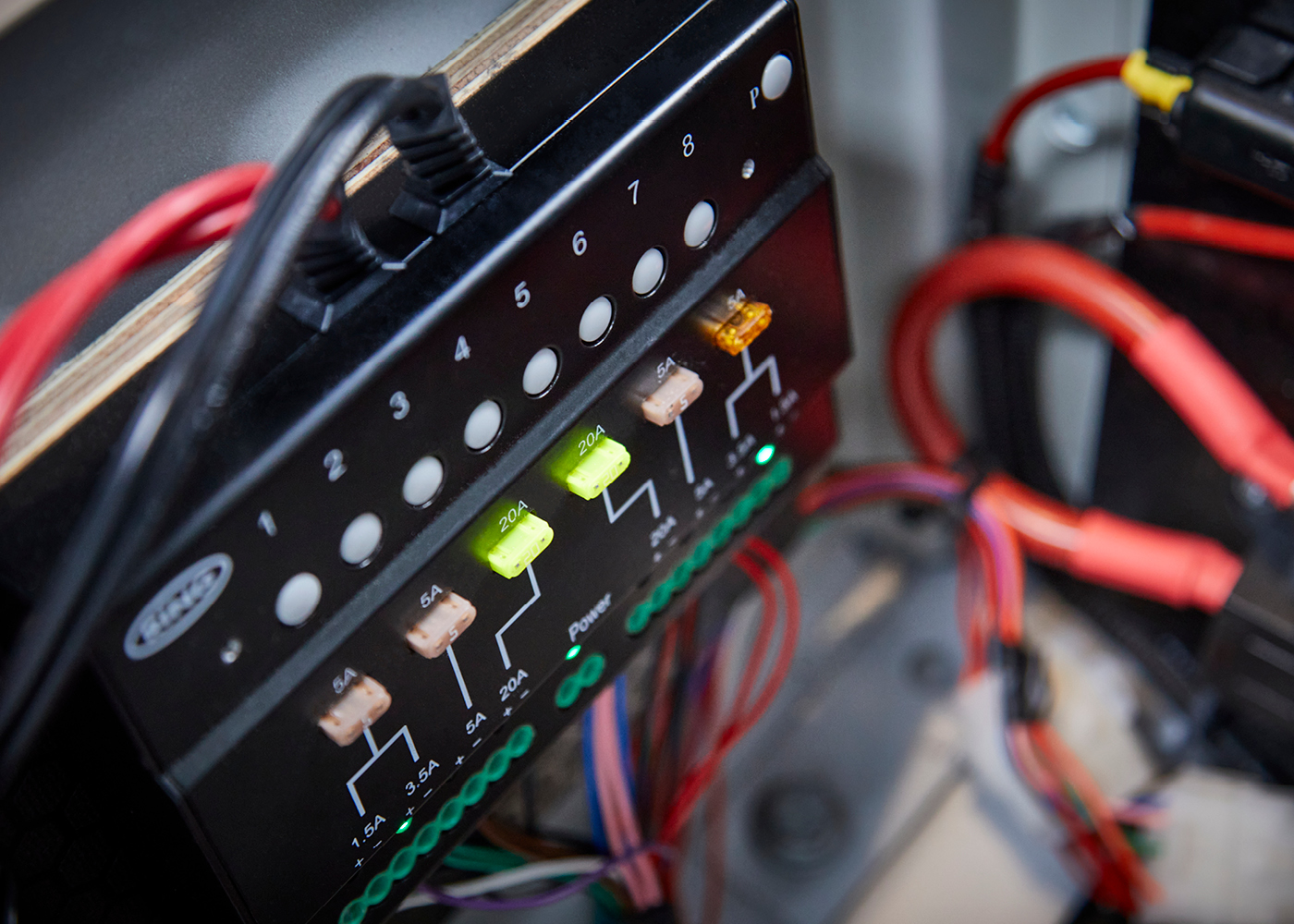

RSU60_TechHub_Insitu

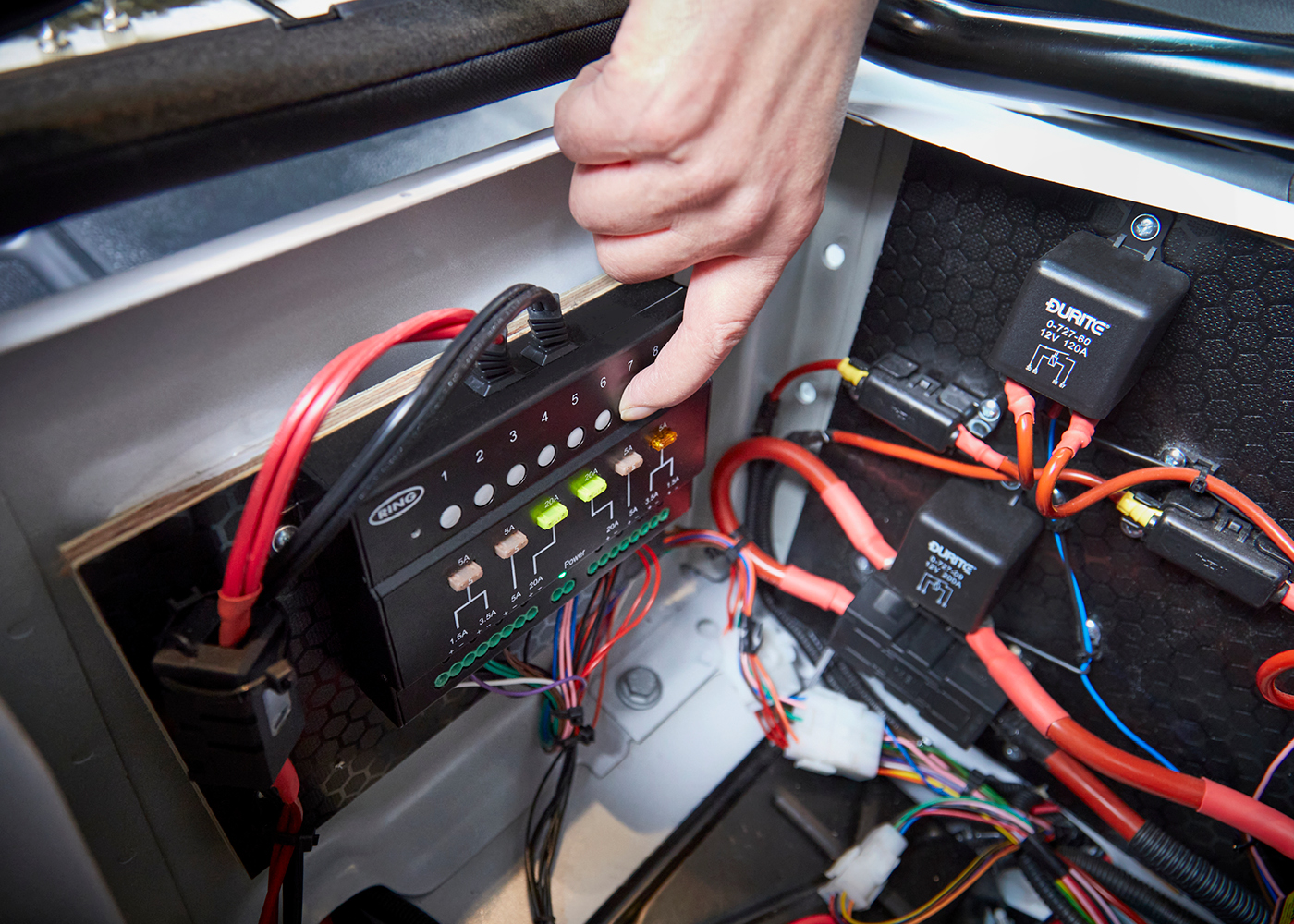

RSU60_TechHub_Installment

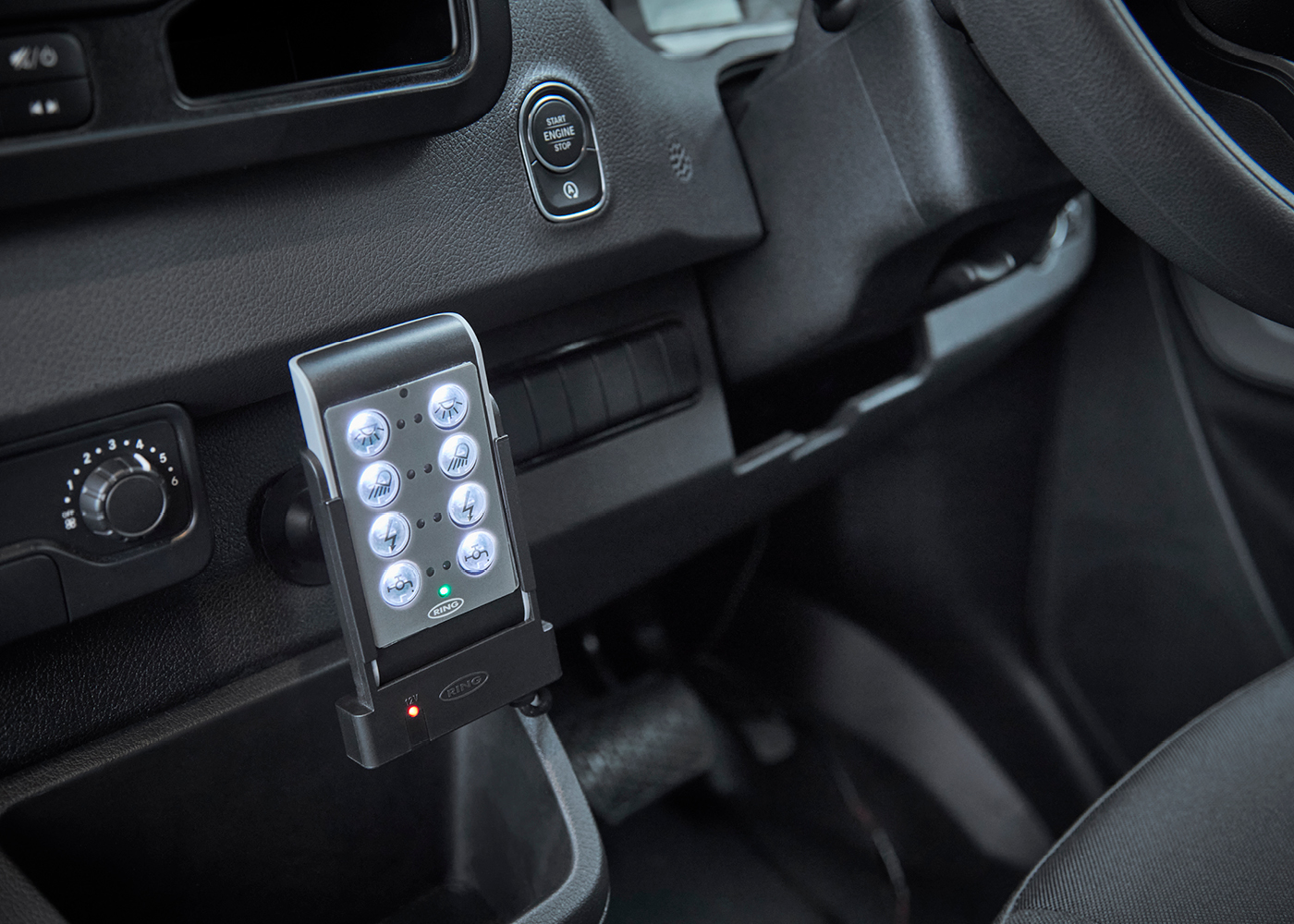

RSU60_Insitu_Switch-Remote
RSU60_Insitu_Switch_Remote_Use

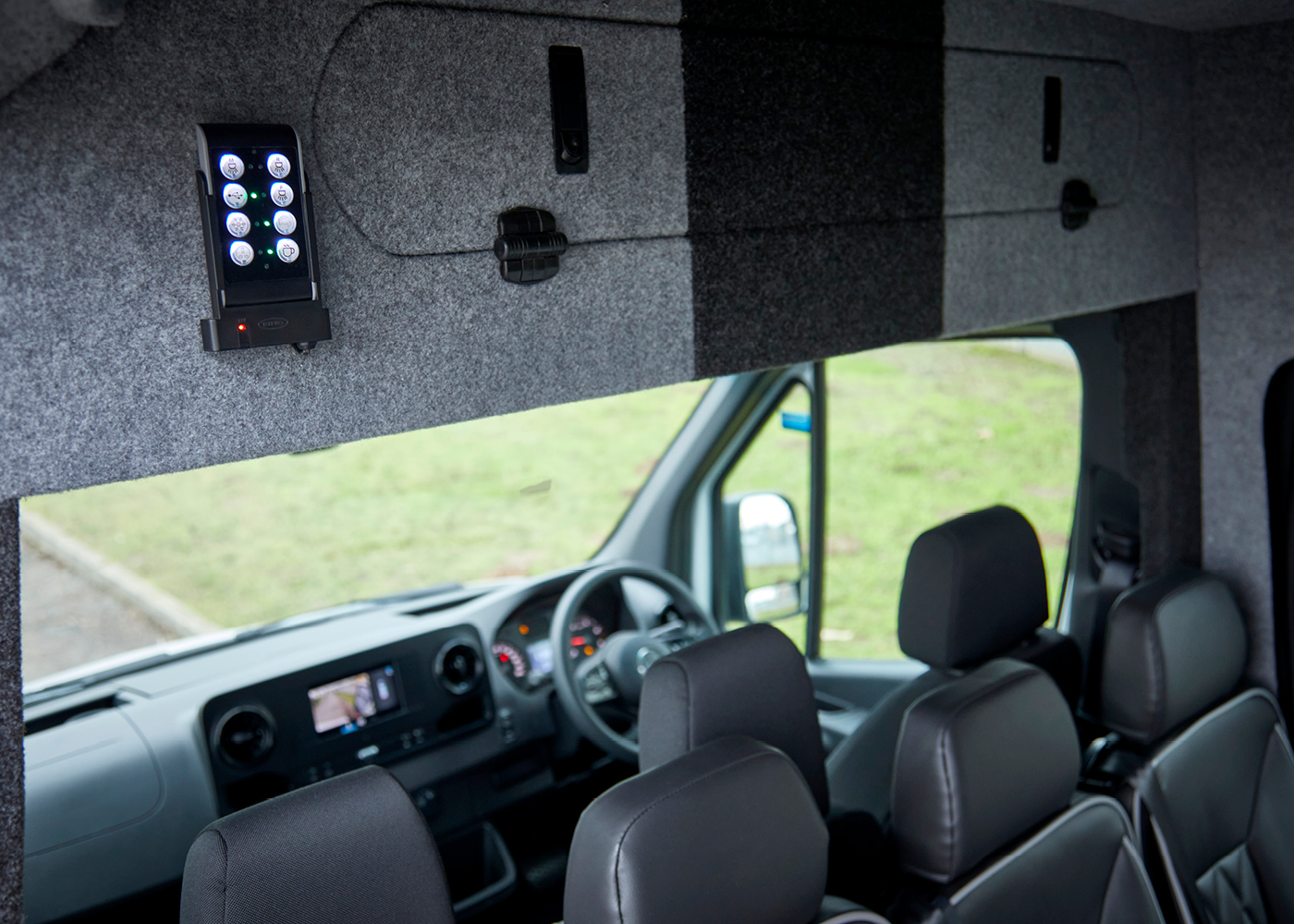

RSU60_Switch_Remote_Installment

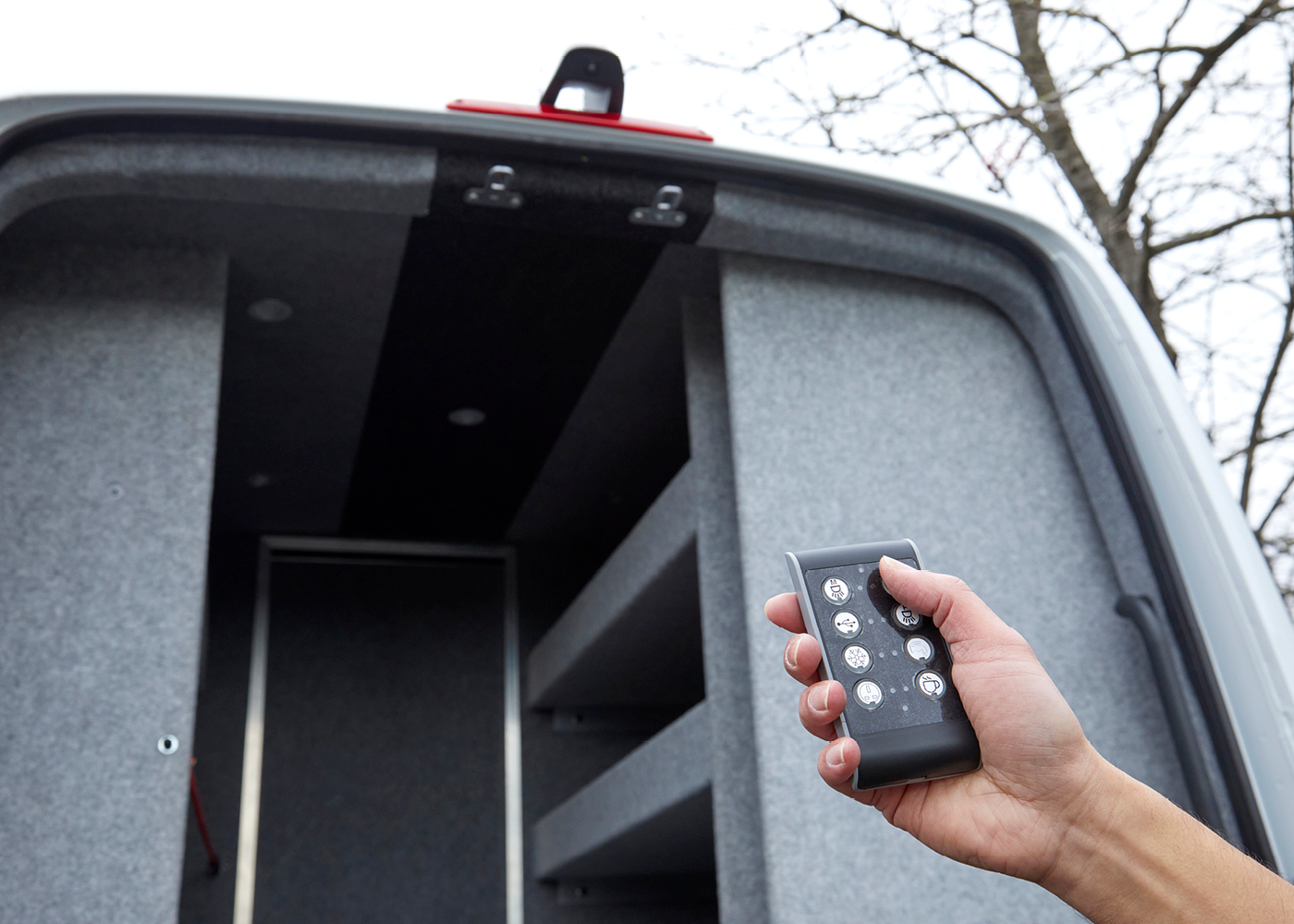

RSU60_Insitu_Lights

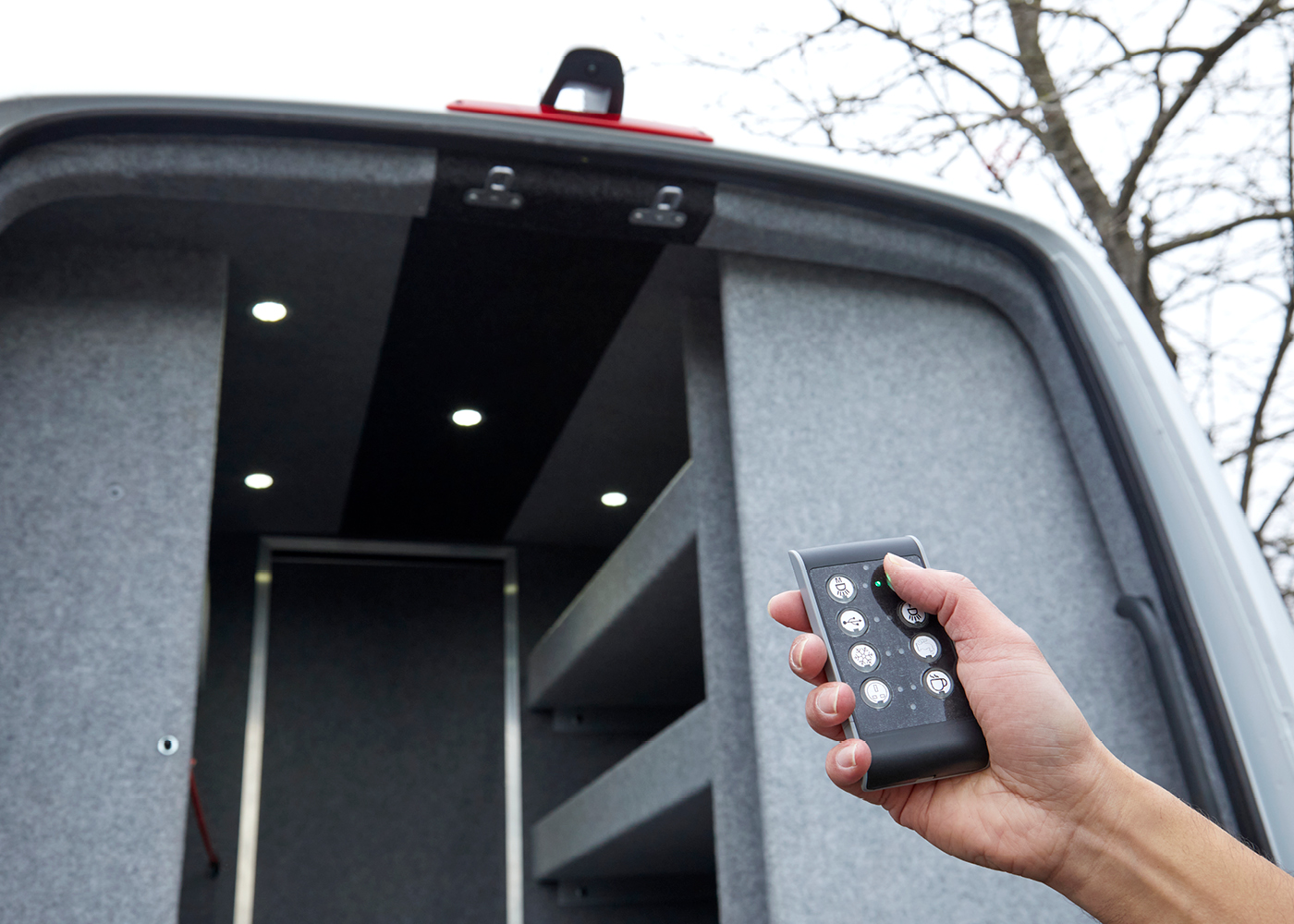

RSU60_Insitu_lights_on
RSU60_Example_Setup
RSU60_Example_Setup

RSU60

Wireless Connect is the smart way to control power to ancillary electrical products. The one central Tech Hub connects to the vehicle's 12V battery, allowing 8 ancillary electrical products to be wired to one location. Then through unique signal pairing each device can be wireless accessed through the switch remote.

This can save up to 45mins per product installation, vastly reducing the amount of wiring. The system is easier to fit with the tech hub located to minimise wiring and fitting times.

With fewer connections and one central wiring point, fault finding is simpler and vehicles can be back in operation quickly. The switch remote can be located anywhere on the vehicle and can be operated remotely during on-site working.

  • Single point connection for efficient installation
  • 60Amp capacity, powerful enough to operate multiple ancillaries at the same time
  • Unique signal pairing allowing x2 switch panels to be conncted
  • 8 fused output channels for easy connection for ancillary electrical products
  • Manual override in case of an emergency
  • Battery protection maintains battery voltage
  • Switch remote - Single point switch panel where 8 switches are controlled via one user interface
  • Switch remote - Backlit illumination for working at low light
  • Switch remote - Active channel lights indicates switch status icon
  • Switch remote - Lithium battery for quick efficient recharging
  • Switch remote - Adaptable switch icons to suit individual requirements
  • Switch remote - Docking station for secure fitment when travelling or recharing
Product dimensions (mm): HxWxD
115 x 164 x 45
Weight (kg)
1.032
Voltage
12V DC
E Regulation
10 - EMC
AmpsOutput
60A
Battery Info:
Batteries Included
Type: RECHARGEABLE LITHIUM-ION
1 x CUSTOM

Available as

BOX - SINGLE
Code: RSU60

BOX - SINGLE
